Flat Pack Office Cabins

Browse Our Full Range Today

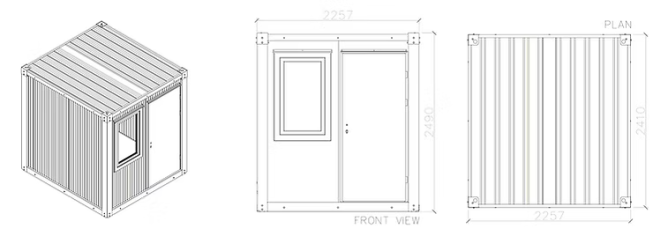

2m Flat Pack Office Cabin

Dimensions + Measures

  • External Dimensions (mm): 2,257 x 2,410 x 2,490
  • Internal Dimensions (mm): 1950 x 2220 x 2310 (6.40 ft x 7.28 ft x 7.58 ft)
  • Flat Pack Dimensions (mm): 2150 x 2400 x 530 (7.05 ft x 7.9 ft x 1.74 ft)
  • Total Weight (kg): 550 kg

Tech Spec

  • Chassis: Galvanized Steel
  • Frames: Galvanized Steel
  • Thermal Insulation (Wall Panels): 50 mm EPS
  • Thermal Insulation (Roof Section): 50 mm EPS
  • Finishing: Electrostatic Powder Coated
  • Internal Colour: Grey White (RAL 9002)
  • External Colour: Grey White (RAL 9002)
  • Base: 18 mm OSB boards
  • Floor Cover: 2 mm abrasion layer PVC cover
  • Gutters: Hidden from corners
  • Door Material: Galvanized Steel with 50 mm EPS insulation
  • Lock Type: Cylinder Lock
  • Opening Windows: 4-12-4 Double Glazed Tilt & Turn
  • Warranty: 1 year

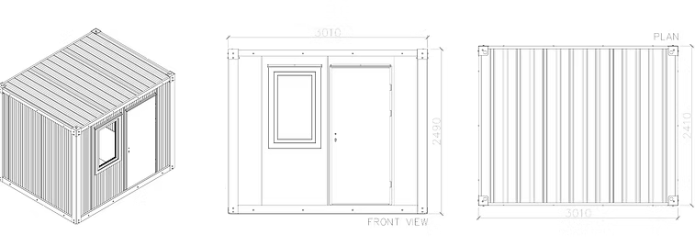

3m Flat Pack Office Cabin

Dimensions + Measures

  • External Dimensions (mm): 3,010 x 2,410 x 2,490 (10 ft x 7.9 ft x 8.1 ft)
  • Internal Dimensions (mm): 3,050 x 2,220 x 2,250 (10.01 ft x 7.28 ft x 7.58 ft)
  • Flat Pack Dimensions (mm): 3,010 x 2,410 x 500 (10 ft x 7.9 ft x 1.7 ft)
  • Total Weight (kg): 710 kg

Tech Spec

  • Chassis: Galvanized Steel
  • Frames: Galvanized Steel
  • Thermal Insulation (Wall Panels): 50 mm EPS
  • Thermal Insulation (Roof Section): 50 mm EPS
  • Finishing: Electrostatic Powder Coated
  • Internal Colour: Grey White (RAL 9002)
  • External Colour: Grey White (RAL 9002)
  • Base: 18 mm OSB boards
  • Floor Cover: 2 mm abrasion layer PVC cover
  • Gutters: Hidden from corners
  • Door Material: Galvanized Steel with 50 mm EPS insulation
  • Lock Type: Cylinder Lock
  • Opening Windows: 4-12-4 Double Glazed Tilt & Turn
  • Warranty: 1 year

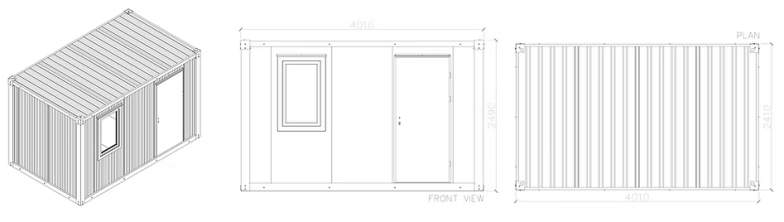

4m Flat Pack Office Cabin

Dimensions + Measures

  • External Dimensions (mm): 4,010 x 2,410 x 2,490 (13.12 ft x 7.9 ft x 8.40 ft)
  • Internal Dimensions (mm): 3,816 x 2,216 x 2,250 (12.53 ft x 7.28 ft x 7.58 ft)
  • Flat Pack Dimensions (mm): 4,010 x 2,410 x 500 (13.1 ft x 7.9 ft x 1.7 ft)
  • Total Weight (kg): 850 kg


Tech Spec

  • Chassis: Galvanized Steel
  • Frames: Galvanized Steel
  • Thermal Insulation (Wall Panels): 50 mm EPS
  • Thermal Insulation (Roof Section): 50 mm EPS
  • Finishing: Electrostatic Powder Coated
  • Internal Colour: Grey White (RAL 9002)
  • External Colour: Grey White (RAL 9002)
  • Base: 18 mm OSB boards
  • Floor Cover: 2 mm abrasion layer PVC cover
  • Gutters: Hidden from corners
  • Door Material: Galvanized Steel with 50 mm EPS insulation
  • Lock Type: Cylinder Lock
  • Opening Windows: 4-12-4 Double Glazed Tilt & Turn
  • Warranty: 1 year

6m Flat Pack Office Cabin

Dimensions + Measures

  • External Dimensions (mm): 4,010 x 2,410 x 2,490 (13.12 ft x 7.9 ft x 8.40 ft)
  • Internal Dimensions (mm): 3,816 x 2,216 x 2,250 (12.53 ft x 7.28 ft x 7.58 ft)
  • Flat Pack Dimensions (mm): 4,010 x 2,410 x 500 (13.1 ft x 7.9 ft x 1.7 ft)
  • Total Weight (kg): 850 kg


Tech Spec

  • Chassis: Galvanized Steel
  • Frames: Galvanized Steel
  • Thermal Insulation (Wall Panels): 50 mm EPS
  • Thermal Insulation (Roof Section): 50 mm EPS
  • Finishing: Electrostatic Powder Coated
  • Internal Colour: Grey White (RAL 9002)
  • External Colour: Grey White (RAL 9002)
  • Floor: PVC vinyl coated over 18 mm OSB-3 boards
  • Gutters: Hidden
  • Door Material: Galvanized Steel Panel
  • Lock Type: Cylinder Lock
  • Opening Windows: 2 × Double Glazed
  • Warranty: 1 year

Get A Free Quote

Fill out the form below and one of our team will be in touch shortly.

Key Features

Take a look at what makes our units special

EPS Insulation

Roof Insulation

Strong Base Chassis

Flat pack cabins; The perfect solution for restricted places

In contrast to standard shipping containers or mono-block cabins that can only be delivered as a single unit, our demounted flat-pack office units offer a flexible alternative, allowing for transportation and unloading in restricted and hard-to-reach locations. These flat-pack cabins can be conveniently delivered on a flatbed truck or even a trailer, providing a significant advantage for navigating narrow roads. This delivery method also offers cost savings, particularly for multiple unit purchases or deliveries, compared to standard containers. Our units are stacked during transportation, enabling us to offer these products at reasonable and competitive prices due to the favorable transportation costs.

Assembling your flat-pack office cabin

The assembly process for your flat-pack prefab cabin is a straightforward task that typically requires 2 to 4 people, depending on the cabin size. Within a time frame of less than 2 hours, you can complete the erection of your portable cabin. The process involves positioning the cabin in its designated installation location, securing the bolts of the corner posts, locating the wall panels, doors, and windows to the designated slots, affixing the upper beams to lock the structure, and erecting the roof. All the necessary materials, including corner trims, bolts, nuts, and screws, are provided with your unit. For frequently asked questions and detailed assembly instructions, please refer to our FAQ and Assembly pages.

If you need to move your cabin unit to another location, you have the flexibility to transport it as an assembled structure or disassemble it back to its original flat form by following the steps in reverse.

Still Have Questions?

Call us or leave your phone number and we'll call you back.

Prefab Container Units

Our prefab container units cater to a diverse range of business customers, including construction companies, industrial premises, warehouses, car garages, and households. They offer numerous key advantages and features:

  • Watertight and windproof: Watertight up to 50 kg/m2 and windproof up to 63 miles/hour
  • Thermally insulated: 50 mm thick EPS insulation material filled galvanized steel sandwich wall panels, 50 mm EPS insulated roof panels, heat effective double glazed windows.
  • Secure: Galvanised sheet formed and insulated door and the cylinder lock.
  • Simple: Easy to assemble and disassemble the units. No experience, skills or special equipment is needed.
  • Flexible: Different sizes can be chosen.
  • Multi-Purpose: Can be used as garden office, garden shed, storage or extra space for your house; welfare unit, canteen, office, drying room, sleeper cabin, first aid room, meeting room, marketing suite or waiting lounge for construction sites, farms or businesses.

The units are delivered as flat pack and either a forklift or a crane is required to unload it from the truck and locate it to its final assemble position. Alternatively, we offer the option to deliver the cabin using a Hiab, which unloads the unit directly to the desired location, eliminating the need for lifting equipment on your site. Please check the weight of the parts of units from the dimensions and measures tab, so you can easily guess how many hands you need for the assembly. Also you can check our Photo Gallery page, which contains photos of different techniques of actual unloading.

* Please note that the floor colors may vary slightly between products and batches.

Customized Units & Projects

If you are looking for multiple cabins, customized products such as different sized units, extra doors or windows, full length windows or other project-based cabins, please feel free to contact us. We are committed to meeting your individual requirements and delivering the solutions you need.
